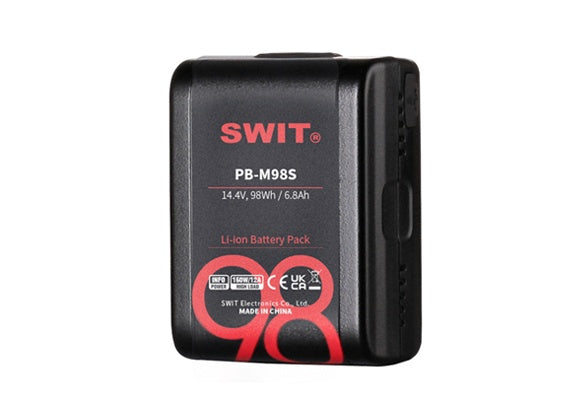

SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output (V-Mount)

Tiny V-mount battery

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras. PB-M98S Pocket V-mount battery is designed for the above applications! It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!

98Wh Fly Friendly

150W/12A constant high load

PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane. The constant load is as high as 150W, 12A, applicable for high power devices.

Built-in D-tap and USB

The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger. The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A. The following chargers are recommended: 1. S-3822S, Portable 2-ch Simultaneous Charger Charge 2x PB-M98S: Approx. 3 hours 2. PC-U130B2, Ultra-Portable Dual D-tap head charger Charge 1x PB-M98S: Approx. 3 hours Charge 2x PB-M98S: Approx. 5 hours and 15 minutes

Hot-Swap Adaptor

You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Key Features

• Tiny V-mount battery, Pocket fit› 98Wh/6.8Ah fly-friendly capacity› 150W/12A constant high load› 1x D-tap output & charging input › 1x USB 5V/2A output › 5-step LED power indicator › Power info for both SONY & RED › Wire-Free internal technic › Multiple circuit protections
