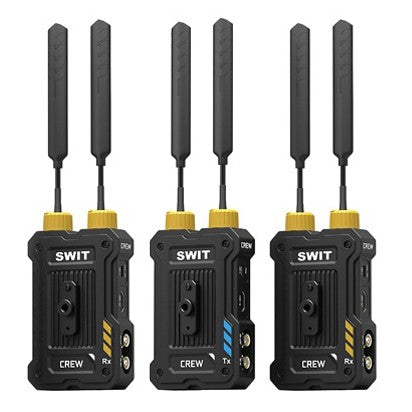

SWIT T1R2 – 1.2km/4000ft Pro Wireless Video Transmission

SWIT T1R1 – 1.2km/4000ft Pro Wireless Video Transmission Overview

KUWI 2.0 Pro Wireless Video Transmission is a professional-grade wireless video solution designed for filmmakers, broadcasters, and live production teams who demand reliable, high-quality transmission. Operating on proprietary RF technology (not WiFi), it delivers stable HD video up to 1.2 km / 4000 ft line-of-sight , with ultra-low latency of just 32ms .

The system supports 3G-SDI and HDMI® video inputs and outputs, and features USB-C Video Capture for PC/Mac integration. With AES-256 dual encryption , KUWI 2.0 Pro ensures secure and private transmission. The high-bright OLED display makes configuration easy, and the auto-scan function selects the optimal channel for interference-free operation.

The system supports 1 Transmitter to up to 4 Receivers (1T-4R Multicast) , enabling multi-receiver setups without compromising video quality. It also supports MetaData and Timecode Trigger transmission , allowing synchronized production workflows.

1.2km Long Range Wireless Video

Professional RF, NOT WIFI

The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.

KUWI 2.0 Professional Chip, Stable As Always

The New Generation KUWI2.0 professional chip for wireless video, 5765-5840MHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.

Professional Video Production Applications

The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.

Reliable 1.2km Long Distance Transmission

CREW features advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.

32ms Consistent Low Latency

The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency. The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.

Uncompromised 1T to 4R Multi-Cast

The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.

3G-SDI / HDMI / UVC

The Transmitter: 3G-SDI in×1, loop out×1, HDMI in×1 The Receiver: 3G-SDI out×2, HDMI out×1 USB-C Video Capture out×1 * Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.

USB-C Video Capture

For PC/Mac Livestreaming

The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.

USB-C Video Capture

Monitor by Smart Devices

Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of a pro video monitor. * Compatible with all 3rd party “USB camera” APP.

Visually Lossless High Video Quality

The CREW series wireless transmission adopts H.265 High Quality Encoding, bit rate up to 26.8 Mbps, visually lossless compared to cable video.

Display and Configuration

High Bright Color OLED Screen

Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.

MetaData Transmit

CREW supports to wirelessly Transmit SDI embedded MetaData from cine cameras, for DIT livegrading, record and manage the camera information.

TimeCode Trigger Transmit

The CREW wireless system also supports the transmission of SDI embedded timecode and Start/Stop trigger from the camera.

Dual Encryption protection

The CREW wireless system has Dual Encryption protection: 1. Use exclusive KUWI chip of proprietary RF; 2. Adopt AES-256 high level encryption to ensure that the video signals captured on movie sets are not leaked to third parties.

Multiple Power Supply

The CREW wireless can be powered up by NP-F battery or D-tap to 2-pin LEMO cable that provided in package. You can also power the CREW conveniently via its USB-C port.

Group Tagging

4 colors Tags are provided to be placed on the antennas. Different pairing groups of Tx and Rx are distinguished by different colored Tags.

Backup High Gain Antennas

CREW standard antennas are soft-base 3dBi gain, transmit a reliable 900m range in line-of-sight. The package also provides 4× 5dBi high-gain backup antennas that can prolong the distance to 1.2km and improve wall-cross stability.

Key Features

• Key Features
• Up to 1.2km (4000ft) Long-Range Transmission Professional RF technology (not WiFi) ensures stable and reliable video transmission.
• Ultra-Low 32ms Latency Near real-time performance, ideal for professional filmmaking and live production.
• 1 Transmitter to 4 Receivers (Multicast) Simultaneously transmit to up to four receivers without compromising quality or distance.
• Professional I/O + USB-C Video Capture Supports 3G-SDI and HDMI, with direct USB-C output for PC/Mac livestreaming and monitoring.
• Secure Transmission with AES-256 Encryption & KUWI 2.0 Chip Advanced dual encryption and proprietary technology for maximum signal security and stability.
